10.4 Inch~19 Inch 4:3 Windows HMI Rugged Industrial Panel PC

Short Description:

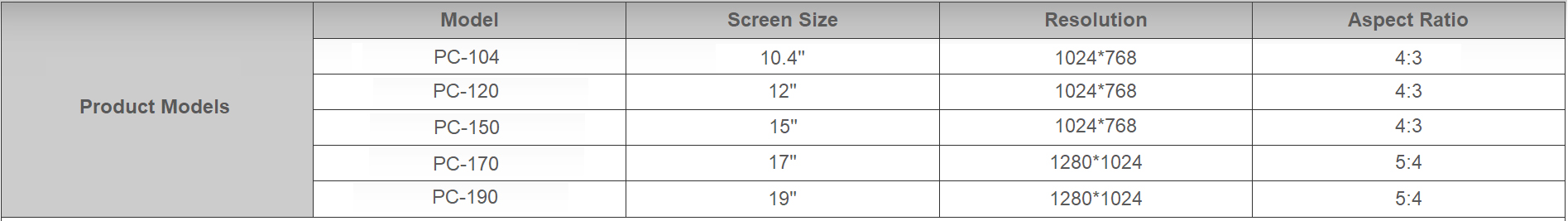

• SIZE: 10.4 “, 12 “, 15 “, 17 “, 19″

• CPU: J1900 / i3 i5 / i7 / J4125

• RAM: 2 G / 4 G / 8G/ 16 G

• ROM: 64 G / 128G / 256G / 512 G

• OS: Windows 7/8/10, Linux and Ubuntu

• LCD: 1024×768/1280×1024(350 Nits (Cd/m2) ~ 1,500 Nits (Cd/m2) high brightness display)

• Case: Aluminum alloy construction, corrosion/heat/chemical resistant

• Panel: IP65 standard

• Touch: Resistor/capacitor touch screen

• Industry: Industrial support,transportation industry, military applications,  medical ,commercial and IoT applications

Product Detail

Product Tags


Product Features

● 10.4" to 19" available for different applications.

● Support multi-touch capacitive touch screens, 4/5-wire resistive touch screens.

● Intel Celeron J1900 quad-core processor(optional i3/i5/i7/J4125), 2G/4G DDR3L memory.

● Industrial-grade LED touch screen, backlight life of over 50,000 hours.

● Aluminum alloy structure, resistant to corrosion/heat/chemical damage.

● Abundant interface, USB+VGA / LAN / DC interface, etc.Support I/O expansion.

● Install WiFi antenna for signal enhancement

● IP65 rating protection standard keeps a reliable operation in dust/oil/electromagnetic interference environments.

● 7*24 hours long-term uninterrupted operation.

● Various installation methods adapt to multiple environments.

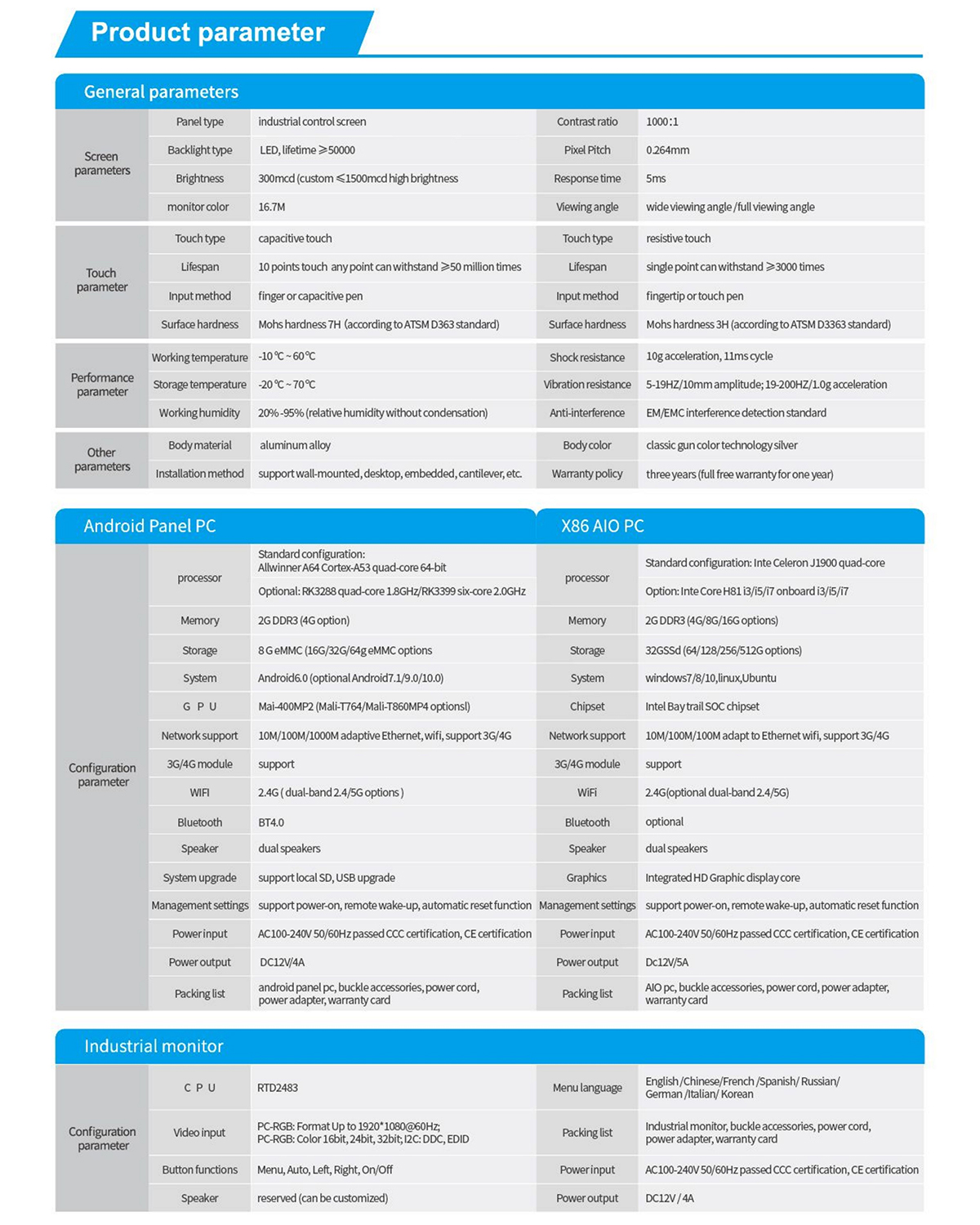

Configuration Items Info
CPU Standard configuration: Intel Celeron J1900 Quad-core 2.0GHz
Hard disk / SSD  Default with 64G (128/256/512G/1T optional)
RAM 2G DDR3 (4G/8G/16G optional)
Chipset Intel Bay trail SOC chipset
Operating system Windows 7/8/10, Linux, Ubuntu
Graphics card Integrated HD Graphic display core
WiFi 2.4G/5G (dual-band 2.4/5G optional)
Bluetooth / GPS / MIC Optional
RTC / Wake-on-LAN / Plug-n-Play Support
Speaker Dustproof Waterproof Dual-speaker
Screen Parameters Gray-scale response time 5ms
Panel type Industrial control A level screen with TFT
Point distance 0.264mm
Contrast 600:1 / 800:1 / 1000:1
Backlight type LED, span life≥50000h
Display color 16.7M
Visual angle 160/160°(178° full view angle is customizable)
Brightness 300~1500cd/m2 (support high brightness)
Touch-type Resistive / Capacitive / Mouse control
Other Parameters Power consumption ≤35W
Power input AC 100-240V, 50/60HZ
Power Output DC 12V / 4A
Anti-static contact 4KV-air 8KV (≥16KV can be customized )
Anti-vibration GB2423 standard
Anti-interference  EMC|EMI anti-electromagnetic interference
Dustproof and waterproof IP65 dust-proof and waterproof for the front panel
Housing material Black/Silver, Aluminum Alloy
Installation method Open frame (Embedded, desktop, wall-mounted, VESA optional)
Relative humidity 95%, Non-Condensing
Working temperature -10°C~60°C (-30°~80°C customizable)
Language menu Chinese, English, German, French, Korean, Spanish, Italian, Russian

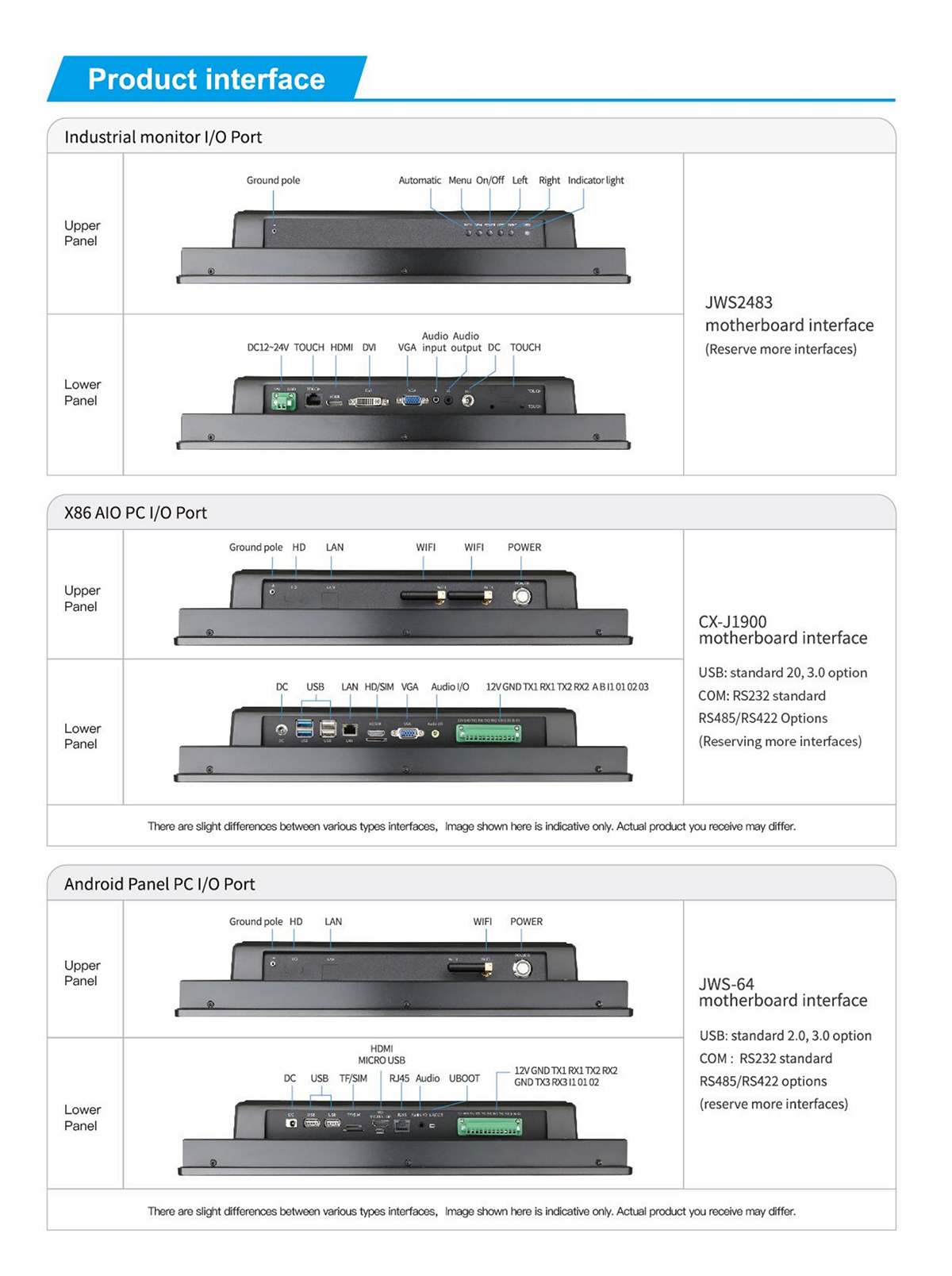

I/O Interface Signal Interface DVI, HDMI, VGA
Power connector DC with ring attachment (optional DC terminal block)
Touch interface USB   I/O Interface
Other interfaces Audio input and output
