Kinds of patterns for tests such as color temperature, grey scale, linearity and accuracy.

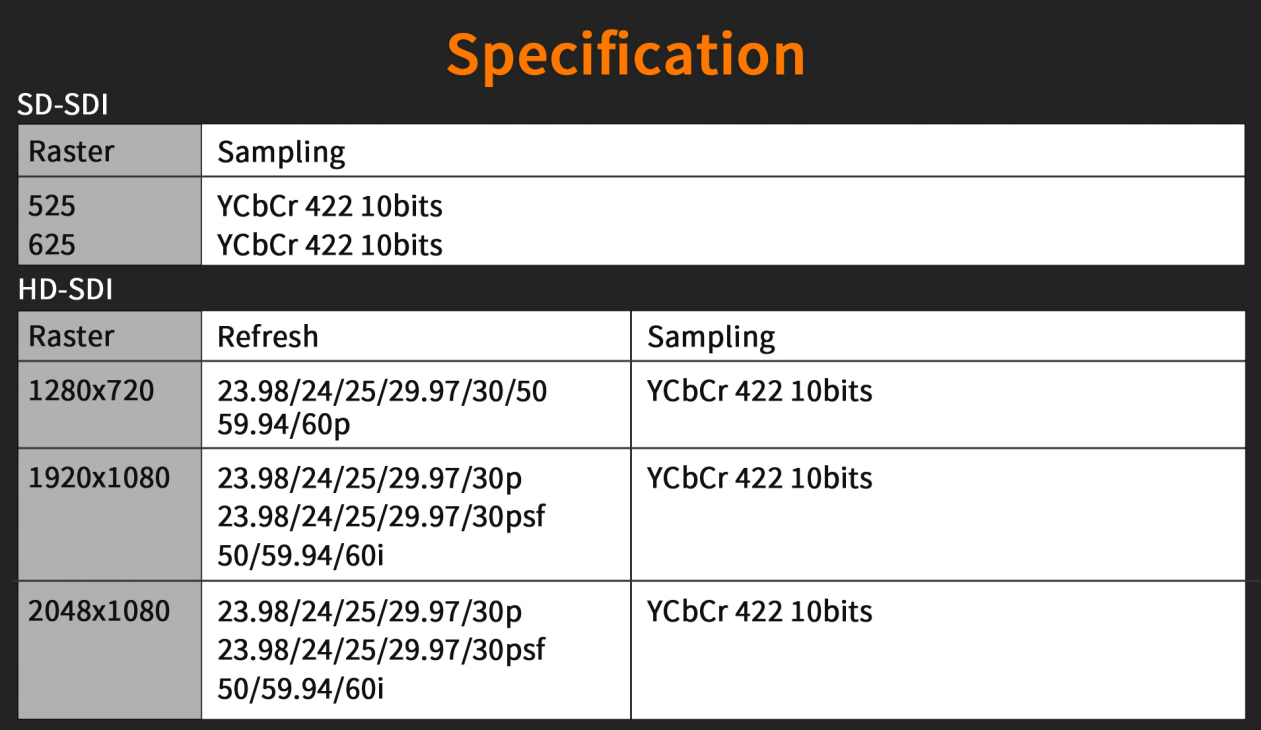

Support SD, HD, 3G LevelA, 3G Level B-DL/DS, 2K HDMI output. The output supports upto 2048×1080@60Hzfor SDI,SPF and HDMI.

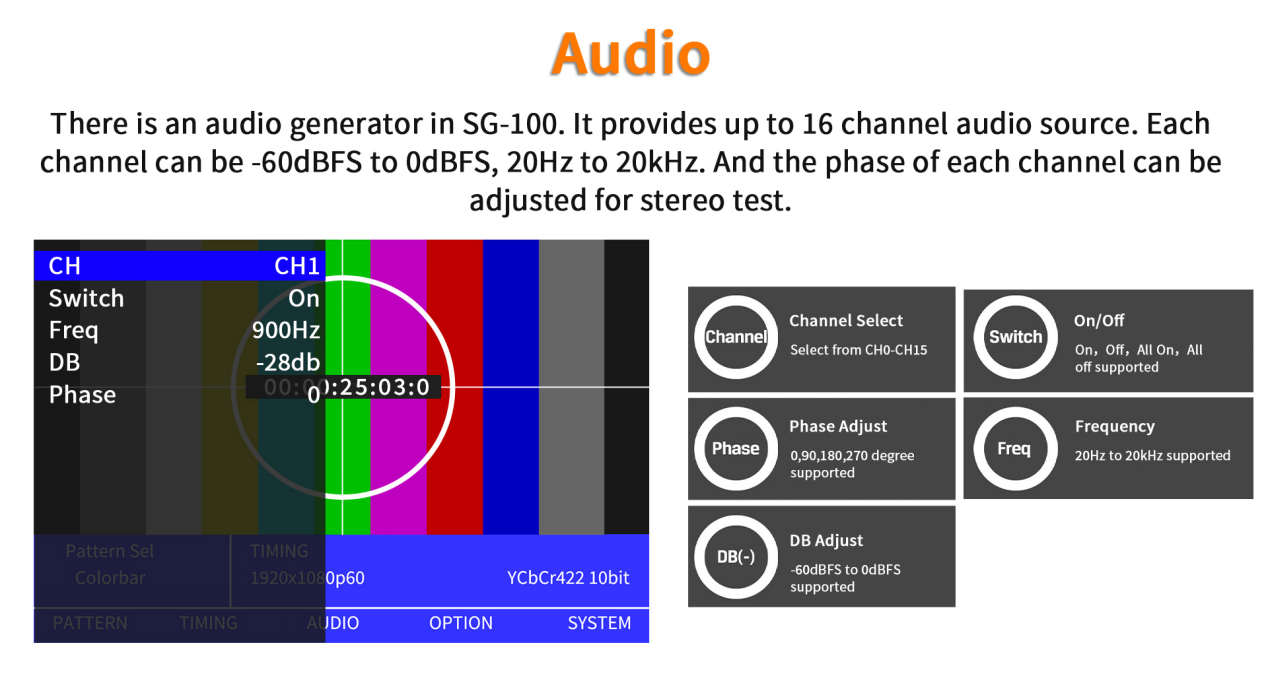

There is an audio generator in SG-100. lt provides up to 16 channel audio source. Eachchannel can be -60dBFS to 0dBFS, 20Hz to 20kHz, And the phase of each channel can be
adjusted for stereo test.
Thefunctions are including text, border line, cross line,frame counter overlaying on the pattern. There is timecode for sdi. There is also image motion function.
